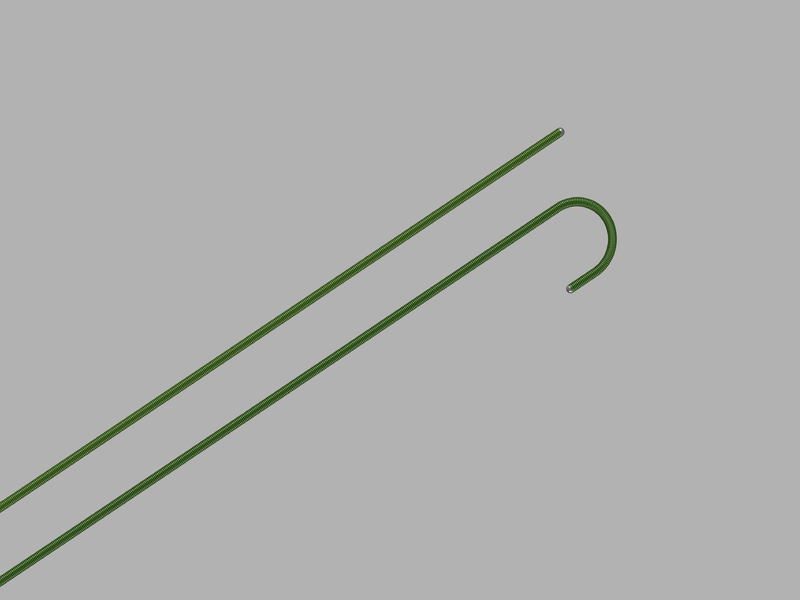

Fixed-Core Wire Guide

Fixed-Core Wire Guide

Used to assist in inserting catheters, introducer sheaths, and other medical devices in vascular applications.

This product line is serviced by the following clinical division(s):

The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.

Learn How to Order» Set up a customer account and order this or other Cook products
Ask a Support Question» Ask Customer Support about our products or services
Find Product Training» Connect with our Vista® Education & Training program
View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded
Order Number Reference Part Number Instructions
for Use (IFU) 		MR
Status 		Diameter inch Length cm Taper Length cm More Info
Safe-T-J® Tip PTFE-Coated Stainless Steel
G00769 TSCF-18-50-3 — N/A .018 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00436 TSCF-18-145-3 — N/A .018 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00456 TSCF-21-50-3 — N/A .021 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00452 TSCF-21-145-3 — N/A .021 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01793 TSCF-21-180-3 — N/A .021 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00455 TSCF-21-260-3 — N/A .021 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00474 TSCF-25-50-3 — N/A .025 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00466 TSCF-25-145-3 — N/A .025 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01602 TSCF-25-180-3 — N/A .025 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00471 TSCF-25-260-3 — N/A .025 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00488 TSCF-32-145-3 — N/A .032 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G02335 TSCF-32-180-3 — N/A .032 180 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00492 TSCF-32-260-3 — N/A .032 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00524 TSCF-35-50-3 — N/A .035 50 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00529 TSCF-35-80-3 — N/A .035 80 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00527 TSCF-35-80-15 — N/A .035 80 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00507 TSCF-35-145-1.5 — N/A .035 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
1.5
G00511 TSCF-35-145-3 — N/A .035 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00513 TSCF-35-145-7.5 — N/A .035 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
4
Tip Curve Radius mm
7.5
G00509 TSCF-35-145-15 — N/A .035 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00902 TSCF-35-180-3 — N/A .035 180 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G02481 TSCF-35-180-15 — N/A .035 180 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00515 TSCF-35-200-3 — N/A .035 200 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00791 TSCF-35-260-1.5 — N/A .035 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
1.5
G00517 TSCF-35-260-3 — N/A .035 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00516 TSCF-35-260-15 — N/A .035 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00550 TSCF-38-50-3 — N/A .038 50 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01285 TSCF-38-60-3 — N/A .038 60 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00552 TSCF-38-80-3 — N/A .038 80 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00533 TSCF-38-100-3 — N/A .038 100 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00541 TSCF-38-145-3 — N/A .038 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00543 TSCF-38-145-7.5 — N/A .038 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
4
Tip Curve Radius mm
7.5
G00539 TSCF-38-145-15 — N/A .038 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00546 TSCF-38-260-3 — N/A .038 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00548 TSCF-38-260-7.5 — N/A .038 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
4
Tip Curve Radius mm
7.5
Heavy Duty with a Safe-T-J Tip PTFE-Coated Stainless Steel
G02165 THSCF-25-180-3 — N/A .025 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01512 THSCF-35-80-1.5 — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
1.5
G04069 THSCF-35-80-3 — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01725 THSCF-35-80-15 — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00412 THSCF-35-145-3 — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G00411 THSCF-35-145-15 — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G01151 THSCF-35-180-15 — N/A .035 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G01197 THSCF-35-260-3 — N/A .035 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01827 THSCF-38-80-3 — N/A .038 80 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G07763 THSCF-38-80-7.5 — N/A .038 80 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
4
Tip Curve Radius mm
7.5
G01886 THSCF-38-80-15 — N/A .038 80 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G00414 THSCF-38-145-3 — N/A .038 145 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01149 THSCF-38-145-15 — N/A .038 145 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6
Tip Curve Radius mm
15
G01348 THSCF-38-180-3 — N/A .038 180 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
G01196 THSCF-38-260-3 — N/A .038 260 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2.5
Tip Curve Radius mm
3
Straight Tip PTFE-Coated Stainless Steel
G00593 TSF-18-50 — N/A .018 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00587 TSF-18-145 — N/A .018 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00590 TSF-18-260 — N/A .018 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00609 TSF-21-50 — N/A .021 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00602 TSF-21-145 — N/A .021 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00605 TSF-21-260 — N/A .021 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00624 TSF-25-50 — N/A .025 50 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00615 TSF-25-125 — N/A .025 125 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00617 TSF-25-145 — N/A .025 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00620 TSF-25-260 — N/A .025 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00638 TSF-32-145 — N/A .032 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00661 TSF-35-50 — N/A .035 50 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00664 TSF-35-80 — N/A .035 80 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00650 TSF-35-145 — N/A .035 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00652 TSF-35-180 — N/A .035 180 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00655 TSF-35-260 — N/A .035 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00670 TSF-38-145 — N/A .038 145 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00674 TSF-38-260 — N/A .038 260 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
Straight Tip Stainless Steel
G00290 SF-18-60 — N/A .018 60 5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00328 SF-35-80 — N/A .035 80 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
Heavy Duty with a Straight Tip PTFE-Coated Stainless Steel
G02109 THSF-25-180 — N/A .025 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G01057 THSF-35-145 — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G06431 THSF-35-180-NY — N/A .035 180 6 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G01518 THSF-38-80 — N/A .038 80 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—
G00426 THSF-38-145 — N/A .038 145 9 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
2
Tip Curve Radius mm
—

Image Library

Fixed-Core Wire Guide
Fixed-Core Wire Guide

Looking for more information about this product?

Call us toll free at 800.457.4500 or fill out the form below.

Please see our Privacy Statement for data protection notices relating to our collection and use of your data.

    *Required Fields

    Not all products shown on this website may be approved in all regulatory jurisdictions.
    Consult with your local Cook representative, distribution company or customer support center for details.

    © Cook 2026

    800.457.4500
