Connecting Tube

Explore our new generation of Blue Rhino® G2-Multi sets and trays with and without with Medtronic’s Shiley™ flexible adult tracheostomy tubes.

Previous versions of the Ciaglia Blue Rhino sets and trays with Shiley PERC6 and PERC8 tracheostomy tubes are no longer available. Legacy Ciaglia Blue Rhino sets and trays without Shiley PERC6 and PERC8 tracheostomy tubes will be available until September 30, 2021.

Please contact your Cook Medical representative or our Customer Support & Delivery team at 800.457.4500 or CustomerSupport@CookMedical.com. They will work with you to find the right fit and to let you know which new product codes you need to order.

This product line is serviced by the following clinical division(s):

Peripheral Intervention »

The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.

Specifications

Collapsed Expanded

Order Number	Reference Part Number	Instructions for Use (IFU)	MR Status	Fr	ID mm	Length cm	More Info
Female-to-Male Luer Lock Polyethylene with Plastic Fittings
G00030	DPT5.3-15-P-FM	—	N/A	5.3	.086	15	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00033	DPT5.3-30-P-FM	—	N/A	5.3	.086	30	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00036	DPT5.3-90-P-FM	—	N/A	5.3	.086	90	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00039	DPT9.5-15-P-FM	—	N/A	9.5	1.70	15	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00043	DPT9.5-30-P-FM	—	N/A	9.5	1.70	30	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00045	DPT9.5-60-P-FM	—	N/A	9.5	1.70	60	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00048	DPT9.5-90-P-FM	—	N/A	9.5	1.70	90	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00037	DPT9.5-120-P-FM	—	N/A	9.5	1.70	120	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00040	DPT9.5-180-P-FM	—	N/A	9.5	1.70	180	Expand »
Additional Specs Description - Maximum Pressure psi 800
Female-to-Male Luer Lock Braided Polyethylene with Plastic Fittings
G00065	HPCT8.8-30-P-FM	—	N/A	8.8	1.70	30	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
G00067	HPCT8.8-60-P-FM	—	N/A	8.8	1.70	60	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
G00069	HPCT8.8-80-P-FM	—	N/A	8.8	1.70	80	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
G00059	HPCT8.8-100-P-FM	—	N/A	8.8	1.70	100	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
G00061	HPCT8.8-120-P-FM	—	N/A	8.8	1.70	120	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
G00882	HPCT8.8-180-P-FM	—	N/A	8.8	1.70	180	Expand »
Additional Specs Description - Maximum Pressure psi 1,200
Female-to-Male Luer Lock Transparent Polyurethane with Plastic Fittings
G00052	DUCT9.5-30-P-FM	—	N/A	9.5	1.70	30	Expand »
Additional Specs Description - Maximum Pressure psi 425
G00053	DUCT9.5-60-P-FM	—	N/A	9.5	1.70	60	Expand »
Additional Specs Description - Maximum Pressure psi 425
G01256	DUCT9.5-80-P-FM	—	N/A	9.5	1.70	80	Expand »
Additional Specs Description - Maximum Pressure psi 425
G01572	DUCT9.5-125-P-FM	—	N/A	9.5	1.70	125	Expand »
Additional Specs Description - Maximum Pressure psi 425

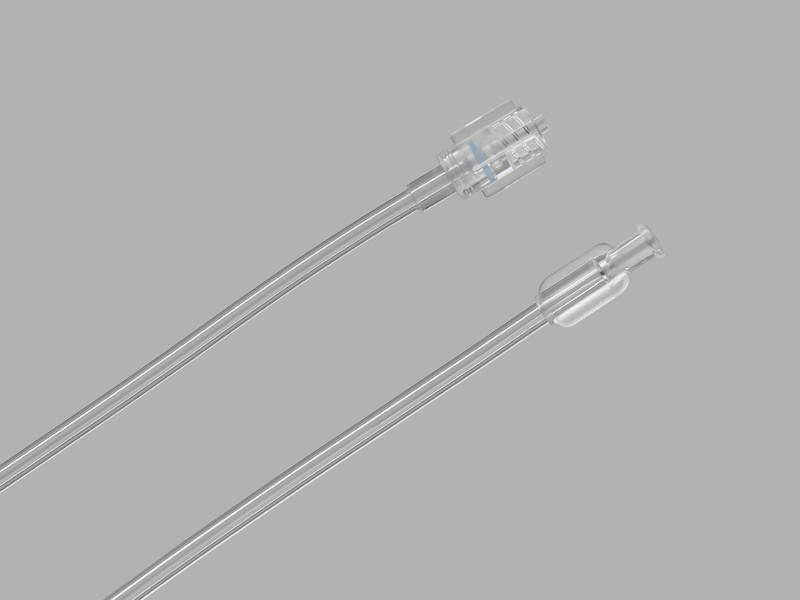

Female-to-Rotating-Male Luer Lock Clear Polyvinylchloride, High Pressure, with Plastic Fittings
G09434	HTT14.5-75-P-FMRA	—	N/A	14.5	—	75	Expand »
Additional Specs Description - Maximum Pressure psi 1,050
G09435	HTT14.5-120-P-FMRA	—	N/A	14.5	—	120	Expand »
Additional Specs Description - Maximum Pressure psi 1,050
Male-to-Male Luer Lock Polyethylene with Plastic Fittings
G00049	DPT9.5-90-P-MM	—	N/A	9.5	1.70	90	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00038	DPT9.5-120-P-MM	—	N/A	9.5	1.70	120	Expand »
Additional Specs Description - Maximum Pressure psi 800
G00041	DPT9.5-180-P-MM	—	N/A	9.5	1.70	180	Expand »
Additional Specs Description - Maximum Pressure psi 800
