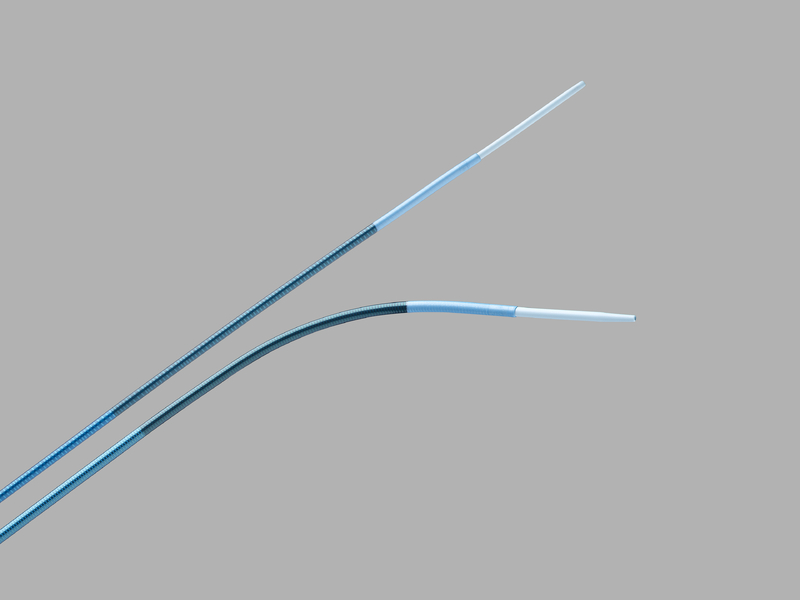

Flexor® Ansel Guiding Sheath

Used to introduce balloons, closed and non-tapered end catheters or other diagnostic and interventional devices.

This product line is serviced by the following clinical division(s):

The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.

Learn How to Order» Set up a customer account and order this or other Cook products

Find Product Training» Connect with our Vista® Education & Training program

View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded

Order Number	Reference Part Number	MR Status	Fr	ID mm	Length cm	More Info
With Tuohy-Borst Sidearm Adapter
G29995	KSAW-5.0-18/38-55-RB-ANL1-HC	N/A	5	1.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G30120	KSAW-5.0-18/38-55-RB-ANL2-HC	N/A	5	1.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
G30121	KSAW-5.0-18/38-55-RB-ANL3-HC	N/A	5	1.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration cobra
G29996	KSAW-6.0-18/38-55-RB-ANL1-HC	N/A	6	2.2	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G29997	KSAW-6.0-18/38-55-RB-ANL2-HC	N/A	6	2.2	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
G29999	KSAW-7.0-18/38-55-RB-ANL1-HC	N/A	7	2.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G30000	KSAW-7.0-18/38-55-RB-ANL2-HC	N/A	7	2.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
With Check-Flo® Valve
G48186	KCFW-4.0-18/35-45-RB-ANL0-HC	N/A	4	1.5	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.035 Tip Configuration straight
G48188	KCFW-4.0-18/35-90-RB-ANL0-HC	N/A	4	1.5	90	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.035 Tip Configuration straight
G48191	KCFW-4.0-18/35-110-RB-ANL0-HC	N/A	4	1.5	110	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.035 Tip Configuration straight
G44153	KCFW-5.0-18/38-45-RB-ANL0-HC	N/A	5	1.9	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G29981	KCFW-5.0-18/38-45-RB-ANL1-HC	N/A	5	1.9	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G30117	KCFW-5.0-18/38-45-RB-ANL2-HC	N/A	5	1.9	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
G48189	KCFW-5.0-18/38-90-RB-ANL0-HC	N/A	5	1.9	90	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G29988	KCFW-5.0-18/38-90-RB-ANL1-HC	N/A	5	1.9	90	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G48192	KCFW-5.0-18/38-110-RB-ANL0-HC	N/A	5	1.9	110	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G44154	KCFW-6.0-18/38-45-RB-ANL0-HC	N/A	6	2.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G29982	KCFW-6.0-18/38-45-RB-ANL1-HC	N/A	6	2.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G29983	KCFW-6.0-18/38-45-RB-ANL2-HC	N/A	6	2.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
G29984	KCFW-6.0-18/38-45-RB-ANL3-HC	N/A	6	2.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration cobra
G29989	KCFW-6.0-18/38-90-RB-ANL1-HC	N/A	6	2.2	90	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G44155	KCFW-7.0-18/38-45-RB-ANL0-HC	N/A	7	2.5	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G29985	KCFW-7.0-18/38-45-RB-ANL1-HC	N/A	7	2.5	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G29986	KCFW-7.0-18/38-45-RB-ANL2-HC	N/A	7	2.5	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration renal double
G49099	KCFW-8.0-18/38-45-RB-ANL0-HC	N/A	8	2.9	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G49100	KCFW-8.0-18/38-45-RB-ANL1-HC	N/A	8	2.9	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
G49101	KCFW-9.0-18/38-45-RB-ANL0-HC	N/A	9	3.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration straight
G49102	KCFW-9.0-18/38-45-RB-ANL1-HC	N/A	9	3.2	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .018/.038 Tip Configuration multipurpose
With High-Flex Dilator and Check-Flo Valve
G56229	KCFW-4.0-35-55-RB-HFANL0-HC	N/A	4	1.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56234	KCFW-4.0-35-55-RB-HFANL1-HC	N/A	4	1.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56219	KCFW-4.0-35-70-RB-HFANL0-HC	N/A	4	1.5	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56224	KCFW-4.0-35-70-RB-HFANL1-HC	N/A	4	1.5	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56230	KCFW-5.0-35-55-RB-HFANL0-HC	N/A	5	1.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56235	KCFW-5.0-35-55-RB-HFANL1-HC	N/A	5	1.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56220	KCFW-5.0-35-70-RB-HFANL0-HC	N/A	5	1.9	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56225	KCFW-5.0-35-70-RB-HFANL1-HC	N/A	5	1.9	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56231	KCFW-6.0-35-55-RB-HFANL0-HC	N/A	6	2.2	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56236	KCFW-6.0-35-55-RB-HFANL1-HC	N/A	6	2.2	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56221	KCFW-6.0-35-70-RB-HFANL0-HC	N/A	6	2.2	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56226	KCFW-6.0-35-70-RB-HFANL1-HC	N/A	6	2.2	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56232	KCFW-7.0-35-55-RB-HFANL0-HC	N/A	7	2.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G49043	KCFW-7.0-35-55-RB-HFANL1-HC	N/A	7	2.5	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56222	KCFW-7.0-35-70-RB-HFANL0-HC	N/A	7	2.5	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G56227	KCFW-7.0-35-70-RB-HFANL1-HC	N/A	7	2.5	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56233	KCFW-8.0-35-55-RB-HFANL0-HC	N/A	8	2.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G49045	KCFW-8.0-35-55-RB-HFANL1-HC	N/A	8	2.9	55	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56228	KCFW-8.0-35-70-RB-HFANL1-HC	N/A	8	2.9	70	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56278	KCFW-10.0-35-45-RB-HFANL0-HC	N/A	10	3.4	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G47700	KCFW-10.0-35-45-RB-HFANL1-HC	N/A	10	3.4	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
G56279	KCFW-12.0-35-45-RB-HFANL0-HC	N/A	12	4.1	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration straight
G47701	KCFW-12.0-35-45-RB-HFANL1-HC	N/A	12	4.1	45	Expand »
Additional Specs Description - Accepts Wire Guide Diameter inch .035 Tip Configuration multipurpose
