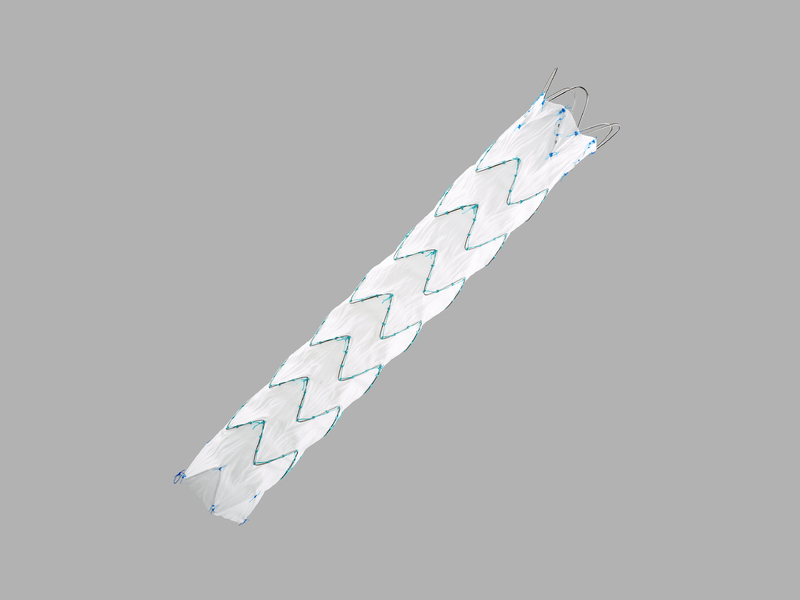

Zenith Alpha™ Thoracic Endovascular Graft Proximal Component

The Zenith Alpha Thoracic Endovascular Graft is indicated for the endovascular treatment of patients with isolated lesions of the descending thoracic aorta (not including dissections) having vascular anatomy suitable for endovascular repair including:

Iliac/femoral anatomy that is suitable for access with the required introduction systems
Nonaneurysmal aortic segments (fixation sites) proximal and distal to the thoracic lesion: with a length of at least 20 mm, and with a diameter measured outer-wall-to-outer-wall of no greater than 42 mm and no less than 15 mm

(Consult the Instructions for Use for a more thorough examination of the deployment protocol, MRI safety, indications for use, contraindications, warnings, and precautions.)

Zenith Alpha Thoracic Endovascular Graft Proximal Components for Canada.

This product line is serviced by the following clinical division(s):

Aortic Intervention »

The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.

Learn How to Order» Set up a customer account and order this or other Cook products

Find Product Training» Connect with our Vista® Education & Training program

View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded

Order Number	Reference Part Number	Aortic Vessel OD mm	Diameter mm	Length mm	More Info
18 mm Diameter
G35327	ZTA-P-18-105-W	15-16	18	105	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
20 mm Diameter
G35329	ZTA-P-20-105-W	17	20	105	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
22 mm Diameter
G35331	ZTA-P-22-105-W	18-19	22	105	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
24 mm Diameter
G35333	ZTA-P-24-105-W	20-21	24	105	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
26 mm Diameter
G35335	ZTA-P-26-105-W	22-23	26	105	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
28 mm Diameter
G35337	ZTA-P-28-109-W	24-25	28	109	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
G35339	ZTA-P-28-155-W	24-25	28	155	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
G35340	ZTA-P-28-201-W	24-25	28	201	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
30 mm Diameter
G35341	ZTA-P-30-109-W	26-27	30	109	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
G35343	ZTA-P-30-155-W	26-27	30	155	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
G35344	ZTA-P-30-201-W	26-27	30	201	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 16 (5.3)/6.0
32 mm Diameter
G35345	ZTA-P-32-109-W	28-29	32	109	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35347	ZTA-P-32-155-W	28-29	32	155	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35348	ZTA-P-32-201-W	28-29	32	201	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
34 mm Diameter
G35349	ZTA-P-34-113-W	30	34	113	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35351	ZTA-P-34-161-W	30	34	161	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35352	ZTA-P-34-209-W	30	34	209	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
36 mm Diameter
G35353	ZTA-P-36-113-W	31-32	36	113	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35355	ZTA-P-36-161-W	31-32	36	161	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35356	ZTA-P-36-209-W	31-32	36	209	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
38 mm Diameter
G35357	ZTA-P-38-117-W	33-34	38	117	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35359	ZTA-P-38-167-W	33-34	38	167	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
G35360	ZTA-P-38-217-W	33-34	38	217	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 18 (6.0)/7.1
40 mm Diameter
G35361	ZTA-P-40-117-W	35-36	40	117	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35363	ZTA-P-40-167-W	35-36	40	167	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35364	ZTA-P-40-217-W	35-36	40	217	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
42 mm Diameter
G35365	ZTA-P-42-121-W	37-38	42	121	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35367	ZTA-P-42-173-W	37-38	42	173	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35368	ZTA-P-42-225-W	37-38	42	225	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
44 mm Diameter
G35369	ZTA-P-44-125-W	39	44	125	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35371	ZTA-P-44-179-W	39	44	179	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35372	ZTA-P-44-233-W	39	44	233	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
46 mm Diameter
G35373	ZTA-P-46-125-W	40-42	46	125	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35375	ZTA-P-46-179-W	40-42	46	179	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
G35376	ZTA-P-46-233-W	40-42	46	233	Expand »
Additional Specs Description - Introducer Sheath ID/OD Fr (mm)/mm 20 (6.7)/7.7
