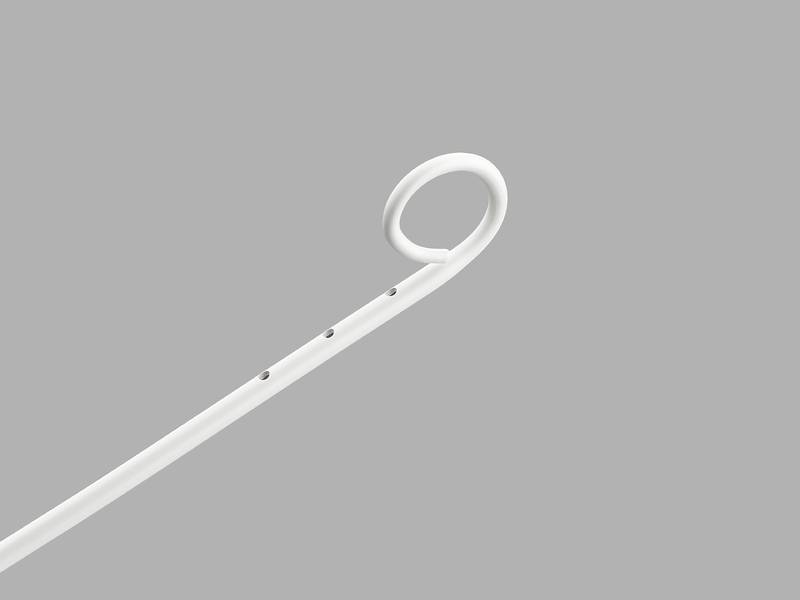

Used to drain fluid from the pericardial sac. Use of standard percutaneous entry (Seldinger) technique facilitates controlled, atraumatic catheter introduction. Catheter is radiopaque polyurethane.
This product line is serviced by the following clinical division(s):
The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.
Specifications
| Order Number | Reference Part Number |
Instructions for Use (IFU) |
MR Status |
Catheter Fr/Length cm |
Catheter Sideports |
Wire Guide Diameter/Length inch/cm |
More Info |
|---|---|---|---|---|---|---|---|
| G02433 | C-PCS-830-LOCK |
|
N/A | 8.3/40 | 6 | .038/70 | Expand » |
|
Additional Specs
Description
-
Needle gage/ Length cm
18/7, 12
Wire Guide Tip Configuration
3 mm J
Included Components
Description
Quantity
Pericardiocentesis Catheter
1
Wire Guide
1
Pericardiocentesis Needle
1
7 Fr Dilator
1
8 Fr Dilator
1
Connecting Tube
1
Low Pressure Clear Body Three-Way Stopcock
1
Alligator Clip Cable
1
Plastic Multipurpose Tubing Adapter
1
|
|||||||
| G04507 | C-PCSY-830-LOCK | — | N/A | 8.3/40 | 6 | .038/70 | Expand » |
|
Additional Specs
Description
-
Needle gage/ Length cm
18/7, 12
Wire Guide Tip Configuration
3 mm J
|
|||||||
| Set Marked Catheter, Dilator and Needle Included | |||||||
| G48638 | C-PCS-830-LOCK-UPMC |
|
N/A | 8.3/40 | 6 | .038/70 | Expand » |
|
Additional Specs
Description
-
Needle gage/ Length cm
18/7
Wire Guide Tip Configuration
3 mm J
|
|||||||
