Amplatz Support Wire Guide

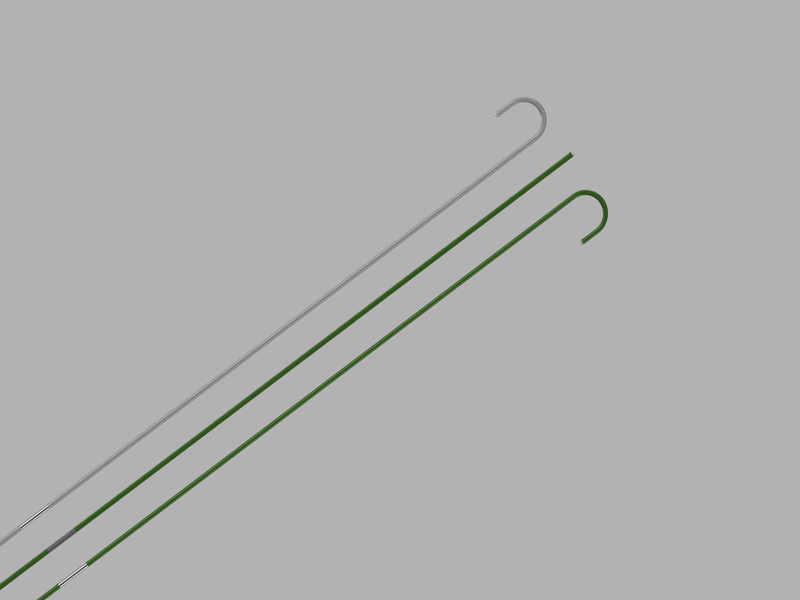

Amplatz Support Wire Guides

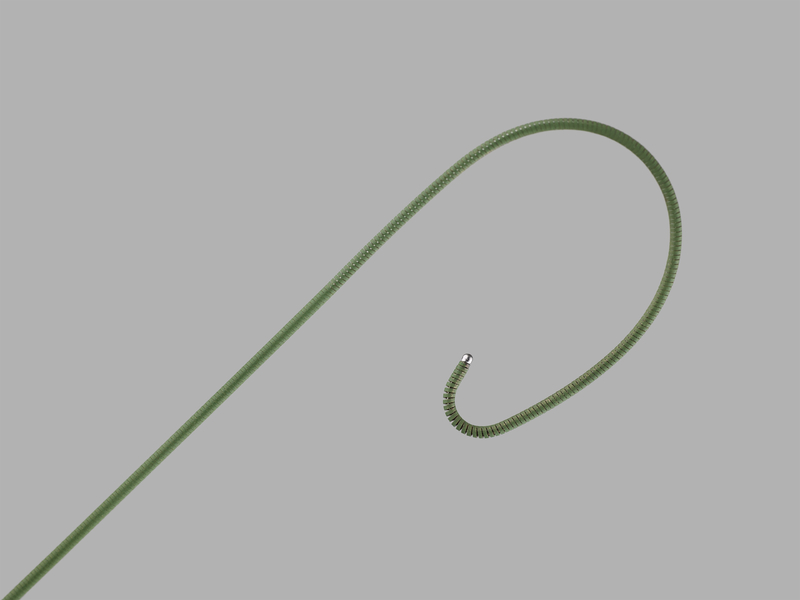

Amplatz Support Wire Guide with APEX curve (G04421)

Used to assist in inserting catheters, introducer sheaths, and other medical devices in vascular applications.

This product line is serviced by the following clinical division(s):

The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.

Learn How to Order» Set up a customer account and order this or other Cook products
Ask a Support Question» Ask Customer Support about our products or services
Find Product Training» Connect with our Vista® Education & Training program
View Your Account Information» Register your customer number on our Customer Portal

Specifications

Collapsed Expanded
Order Number Reference Part Number Instructions
for Use (IFU) 		MR
Status 		Diameter inch Length cm Taper Length cm More Info
Stiff Straight – PTFE-Coated Stainless Steel
G27032 THSF-35-145-ASG — N/A .035 145 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G28781 THSF-35-180-ASG — N/A .035 180 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G27035 THSF-35-260-ASG — N/A .035 260 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G27038 THSF-38-145-ASG — N/A .038 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G27040 THSF-38-180-ASG — N/A .038 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
Extra-Stiff Straight – PTFE-Coated Stainless Steel
G03279 THSF-25-145-AES — N/A .025 145 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03331 THSF-25-180-AES — N/A .025 180 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G04047 THSF-25-260-AES — N/A .025 260 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G04003 THSF-35-80-AES — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23637 THSF-35-80-AES-ST — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G04287 THSFNB-35-145-AES — N/A .035 145 15 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03095 THSF-35-145-AES — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23638 THSF-35-145-AES-ST — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G03330 THSF-35-180-AES — N/A .035 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23639 THSF-35-180-AES-ST — N/A .035 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G03562 THSF-35-260-AES — N/A .035 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23640 THSF-35-260-AES-ST — N/A .035 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G04001 THSF-35-300-AES — N/A .035 300 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23641 THSF-35-300-AES-ST — N/A .035 300 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G03138 THSF-38-80-AES — N/A .038 80 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03539 THSF-38-100-AES — N/A .038 100 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03031 THSF-38-145-AES — N/A .038 145 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G04367 THSFNB-38-145-AES — N/A .038 145 15 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03041 THSF-38-180-AES — N/A .038 180 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G03579 THSF-38-300-AES — N/A .038 300 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
Extra-Stiff Curved – PTFE-Coated Stainless Steel
G28753 THSCF-32-60-3-AES — N/A .032 60 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03584 THSCF-32-180-3-AES — N/A .032 180 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03750 THSCF-32-260-3-AES — N/A .032 260 8 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G04237 THSCF-35-80-3-AES — N/A .035 80 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03203 THSCF-35-145-3-AES — N/A .035 145 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03565 THSCF-35-180-3-AES — N/A .035 180 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03460 THSCF-35-260-3-AES — N/A .035 260 7 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G04421 THSCF-35-260-APEX-1 — N/A .035 260 20 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
—
Tip Curve Radius mm
8/2
G04310 THSCF-38-60-3-AES — N/A .038 60 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03540 THSCF-38-100-3-AES — N/A .038 100 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03047 THSCF-38-145-3-AES — N/A .038 145 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
G03217 THSCF-38-260-3-AES — N/A .038 260 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
3
Ultra-Stiff Straight – PTFE-Coated Stainless Steel
G10168 THSF-35-80-AUS — N/A .035 80 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23642 THSF-35-80-AUS-ST — N/A .035 80 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G09954 THSF-35-145-AUS — N/A .035 145 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G09956 THSF-35-180-AUS — N/A .035 180 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G23644 THSF-35-180-AUS-ST — N/A .035 180 9.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
1
Tip Curve Radius mm
—
G10169 THSF-38-80-AUS — N/A .038 80 11 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
G09957 THSF-38-145-AUS — N/A .038 145 11 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
3
Tip Curve Radius mm
—
Ultra-Stiff 2 Straight – PTFE-Coated Stainless Steel
G19854 THSF-35-260-AUS2 — N/A .035 260 13.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6.5
Tip Curve Radius mm
—
Ultra-Stiff 2 Curved – PTFE-Coated Stainless Steel
G20320 THSCF-35-260-3-AUS2 — N/A .035 260 13.5 Expand »
Additional Specs
Description
-
Floppy Tip Length cm
6.5
Tip Curve Radius mm
3

Documents

Datasheet PDF

Amplatz Support Wire Guide datasheet

PI-BUSM-AMPZDS-EN-201306_M3.pdf »

Image Library

Amplatz Support Wire Guides
Amplatz Support Wire Guide with APEX curve (G04421)
Amplatz Support Wire Guides
Amplatz Support Wire Guide with APEX curve (G04421)
