Used in angiographic procedures by physicians trained and experienced in angiographic techniques.
This product line is serviced by the following clinical division(s):
The products on this website are available for sale in the United States. Reference Part Numbers are not the same in all countries/regions. For products available in other countries, please choose one of our other websites from the region selector at the top of the site or contact your local Cook Medical representative.
Specifications
| Order Number | Reference Part Number |
Instructions for Use (IFU) |
MR Status |
Fr/Length cm | Accepts Wire Guide Diameter inch | Tip Configuration | More Info |
|---|---|---|---|---|---|---|---|
| Aurous Centimeter Sizing Catheter With Beacon® Tip | |||||||
| G31215 | NR5.0-35-70-P-10S-PIG-CSC-20 |
|
N/A | 5.0/70 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| G31213 | NR5.0-35-70-P-10S-0-CSC-20 |
|
N/A | 5.0/70 | .035 | straight | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| G31220 | NR5.0-35-70-P-10S-VCF-CSC-20 |
|
N/A | 5.0/70 | .035 | VCF | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| G31216 | NR5.0-35-100-P-10S-PIG-CSC-20 |
|
N/A | 5.0/100 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| G31214 | NR5.0-35-100-P-10S-0-CSC-20 |
|
N/A | 5.0/100 | .035 | straight | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| G31221 | NR5.0-35-100-P-10S-VCF-CSC-20 |
|
N/A | 5.0/100 | .035 | VCF | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| Aurous Centimeter Sizing Catheter With No Radiopaque Tip | |||||||
| G11916 | N5.0-35-100-P-10S-PIG-CSC-20 |
|
N/A | 5.0/100 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
20/8
|
|||||||
| Cava Sizing Catheter With Beacon Tip | |||||||
| G31230 | NR5.0-35-70-P-10S-PIG-CAVA |
|
N/A | 5.0/70 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/28
|
|||||||
| G31232 | NR5.0-35-70-P-10S-VCF-CAVA |
|
N/A | 5.0/70 | .035 | VCF | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/28
|
|||||||
| G31231 | NR5.0-35-90-P-10S-PIG-CAVA |
|
N/A | 5.0/90 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/28
|
|||||||
| G31233 | NR5.0-35-90-P-10S-VCF-CAVA |
|
N/A | 5.0/90 | .035 | VCF | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/28
|
|||||||
| White Sizing Catheter With Beacon Tip | |||||||

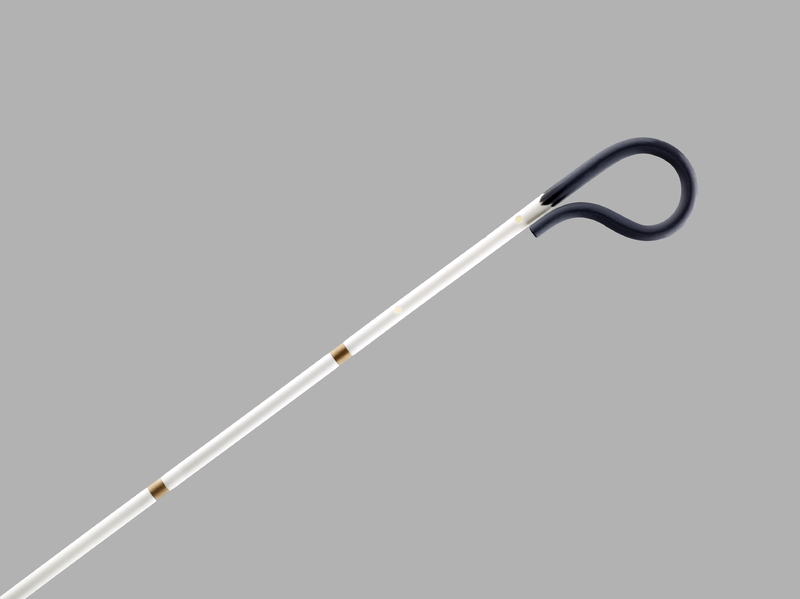

| G31229 | NR5.0-35-65-P-6S-VCF-WSC |
|
N/A | 5.0/65 | .035 | VCF | Expand » |
|
Additional Specs
Description
-
Sideports
6
Number
of Bands/
Placement Interval mm
2/20
|
|||||||
| G31227 | NR5.0-35-70-P-10S-CFP-WSC |
|
N/A | 5.0/70 | .035 | CFP | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/20
|
|||||||
| G31224 | NR5.0-35-70-P-10S-PIG-WSC |
|
N/A | 5.0/70 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/20
|
|||||||
| G31228 | NR5.0-35-70-P-10S-0-WSC |
|
N/A | 5.0/70 | .035 | straight | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/20
|
|||||||
| G31226 | NR5.0-35-100-P-10S-PIG-WSC |
|
N/A | 5.0/100 | .035 | PIG | Expand » |
|
Additional Specs
Description
-
Sideports
10
Number
of Bands/
Placement Interval mm
2/20
|
|||||||
